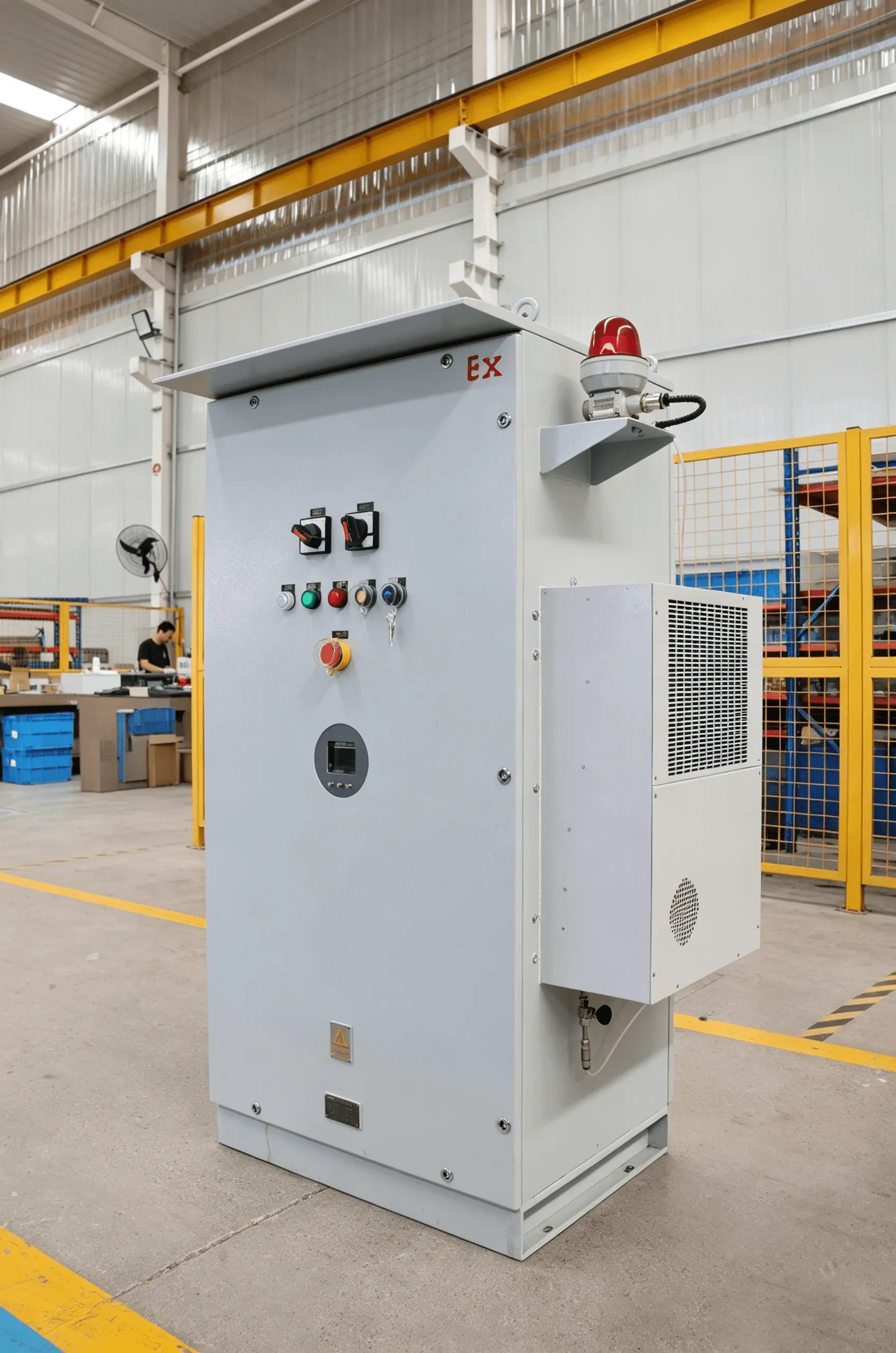

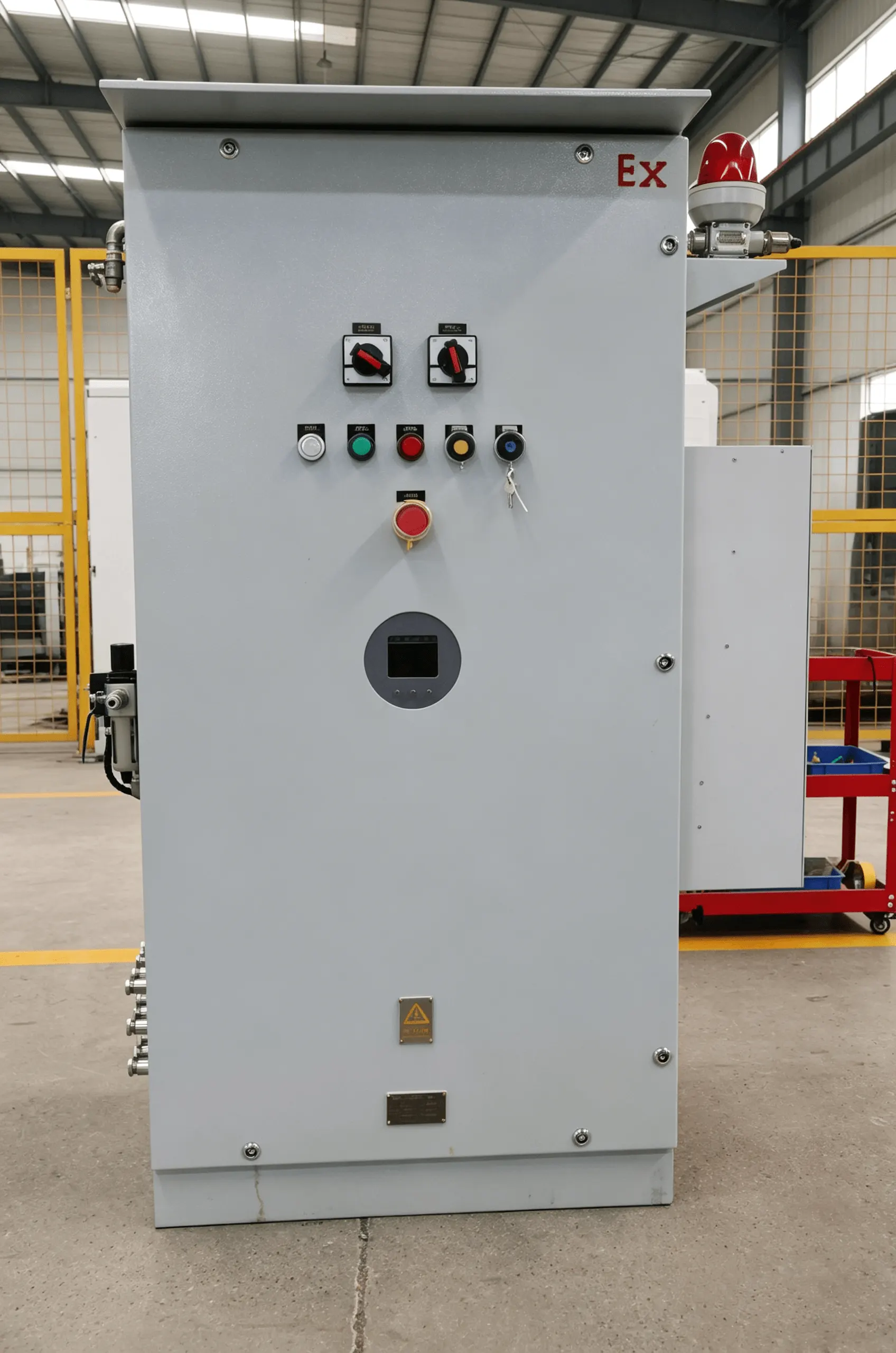

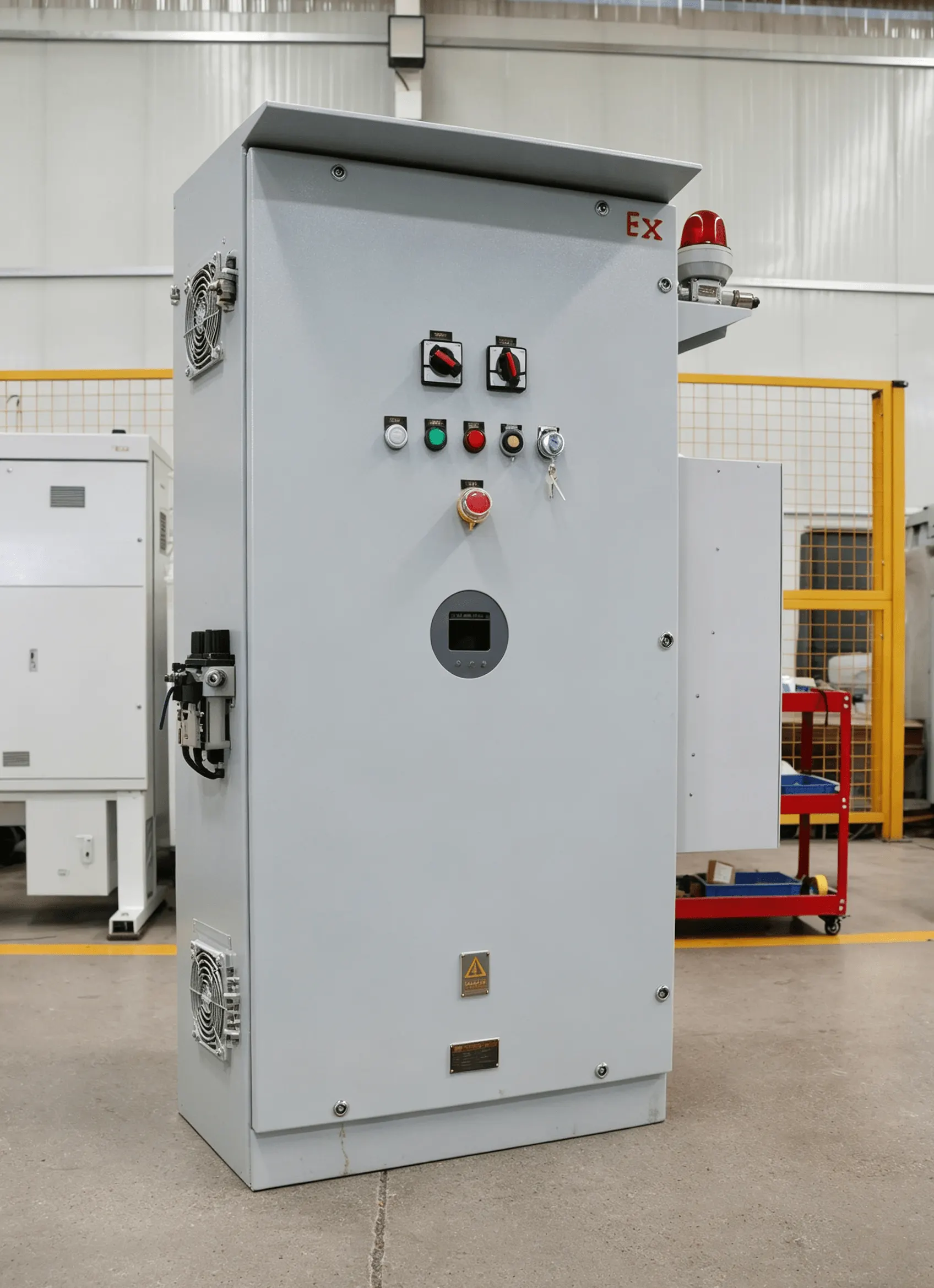

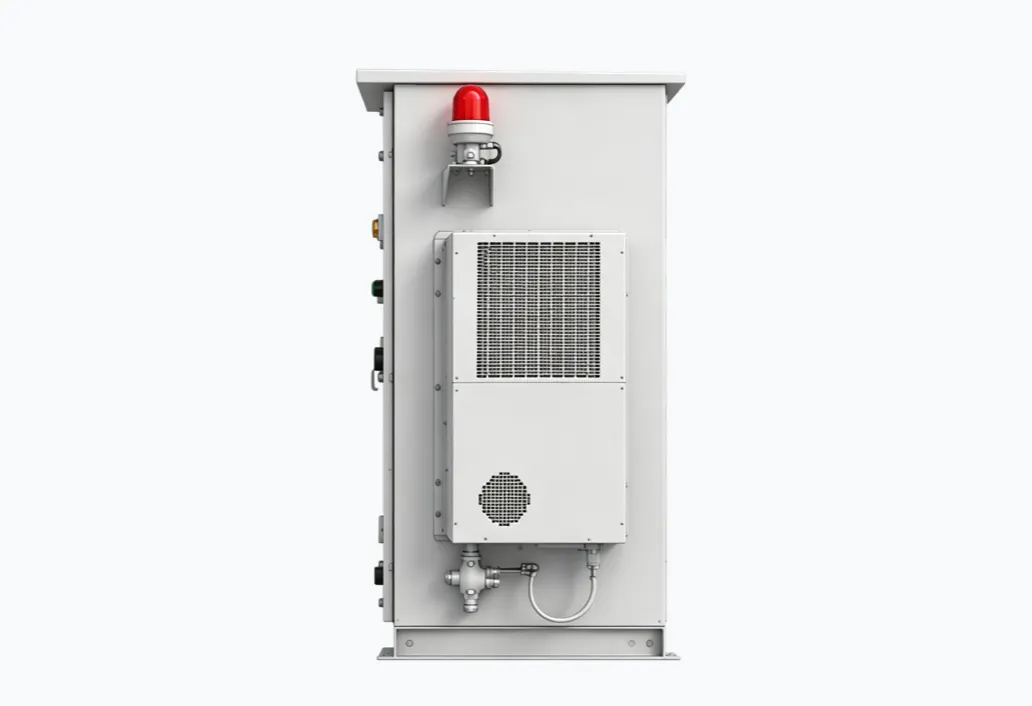

BPXK-51 Positive-pressure Distribution Cabinet

Name: BPXK-51 Positive-pressure Distribution Cabinet
Brand: YOSUN 永上电气
SKU: 3699405

For oil extraction, chemical, smelting, drilling, offshore platforms, pharma and military areas with explosive gas or combustible dust.

Published: 2026-06-07 00:00

ꁆ ꁇ

Home ꄲ Ex-proof Enclosures ꄲ BPXK-51 Positive-pressure Distribution Cabinet

BPXK-51正压型防爆配电柜

适用范围 / Scope of application

For oil extraction, chemical, smelting, drilling, offshore platforms, pharma and military areas with explosive gas or combustible dust mixtures.

Suitable for Zone 1 and Zone 2 explosive gas atmospheres.

适用于IIA、IIB类爆炸性气体环境。

Suitable for Zone 21 and Zone 22 combustible dust atmospheres.

Suitable for IIIA, IIIB and IIIC combustible dust atmospheres.

基本参数 / Basic parameters

壳体材质	碳钢（Q235A）
表面处理	喷漆 / 喷塑
防爆标志	Ex db eb mb pxb ⅡC T4 Gb
遵循标准	GB/T 3836.1-2021、GB/T 3836.2-2021、GB/T 3836.3-2021、GB/T 3836.5-2021、GB/T 3836.9-2021
环境温度	-40℃ ~ +55℃
防护等级	IP66
额定电压	≤AC660V
额定电流	≤400A
电缆引入装置	防爆格兰头、防爆插件
引入装置规格	M16×1.5、M20×1.5、M25×1.5、M32×1.5、M40×1.5、M50×1.5、M63×1.5、M75×1.5、M90×1.5、M90×2、M100×1.5 NPT1/2、NPT3/4、NPT1、NPT1-1/4、NPT1-1/2、NPT2、NPT2-1/2、NPT3

规格尺寸 / Specifications and dimensions
